Explained: The latest and greatest 3D scanning technologies
The ATOS Q sensor combined with the GOM ScanCobot accelerates all processes in quality control of small and medium-sized parts. Measurement planning, digitizing and inspection take place in the virtual measuring room (VMR) of the powerful software GOM Inspect Suite. In shop floor metrology, it is important to identify, analyze and eliminate quality problems as fast as possible. The mobile measuring station GOM ScanCobot enables a fast and efficient 3D inspection of different parts and thus efficiently supports the product development process.

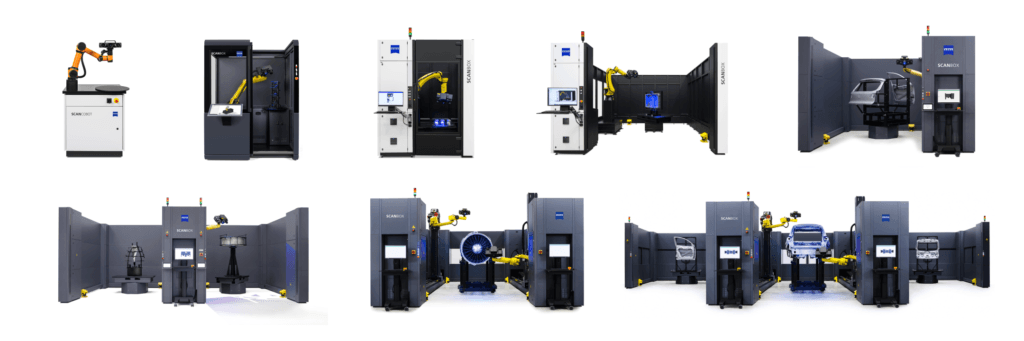

The ZEISS ScanBox is a complete optical measuring machine that was developed by GOM for efficient quality control in production and manufacturing processes. The ATOS ScanBox has been installed several hundred times worldwide and is successfully used in a variety of industries. Eleven models are available for different part sizes and applications.
While mechanical measuring systems capture data in a point-based or linear manner, optical measuring systems provide full-field data about deviations between the actual 3D coordinates and the CAD data. As this measuring data contains all the object information, in addition to the surface deviations from the CAD, the software also automatically derives detailed information such as GD&T, trimming or hole positions.
InfiniteFocus is a highly accurate, fast and flexible optical 3D measurement system. With only one sensor, users verify dimensional accuracy and measure surface roughness of their components. Based on the technology of Focus Variation the range of measurable surfaces is almost unlimited. By means of Vertical Focus Probing, which is an extension of Focus-Variation vertical surfaces are probed laterally as well. Components are traceably measured in high accuracy, with a high vertical resolution and in high repeatability. The robust measurement principle of Focus-Variation in combination with a vibration-isolating hardware enables the form and roughness measurement of also large and heavy components. All axes of InfiniteFocus are equipped with highly accurate encoders ensuring precise stage movement. With an automation interface, InfiniteFocus is also applied for fully automatic measurements also in production.
Our Cobots combine a collaborative 6-axis robot arm and a robust optical 3D measurement sensor to deliver traceable and repeatable high-resolution measurements, even in production. They require no prior knowledge of metrology and make handling, programming and executing measurement series easy. This is made possible by intuitive hand-guided controls for the teach-in of measurement series, automatic measurement evaluation, and a no-enclosures safety concept. As a result, Cobots are ideal for verifying the surface state and dimensional accuracy of work pieces in existing production environments. Users verify surface quality and dimensional accuracy of small features on large components. Examples from the Cobot series are the DiscCobot, the TurbineCobot or the CompactCobot, which are used in the aircraft, automotive and tooling industries for industrial quality assurance. Users also benefit from the high mobility and flexibility of collaborative systems, as Cobots can be positioned as required due to their mobile design. This allows users to measure their components directly in the machine tool.
With an industrial computed tomography system from ZEISS, you can successfully perform measuring and inspection jobs yourself with only one X-ray scan. The standard acceptance test, the precision engineering and the sophisticated calibration process ensure the traceability of the system. Linear guideways and a rotary table meet customers’ highest demands for precision.
ZEISS METROTOM 6 scout digitizes complex parts including the internal geometries at the finest level of detail. You get a complete 3D image for GD&T analyses or nominal-actual comparisons. The metrology CT particularly excels in digitizing small plastic parts.
Computed Tomography Inspection with High Throughput
ZEISS VoluMax CT systems are designed for applications where many components must be inspected quickly. ZEISS customizes the machine and software to fit the inspection job. ZEISS VoluMax can be configured for both manual and automated loading.Customer Testimonials
