ZEISS ScanBox Series 4 - 3D Measuring Machine

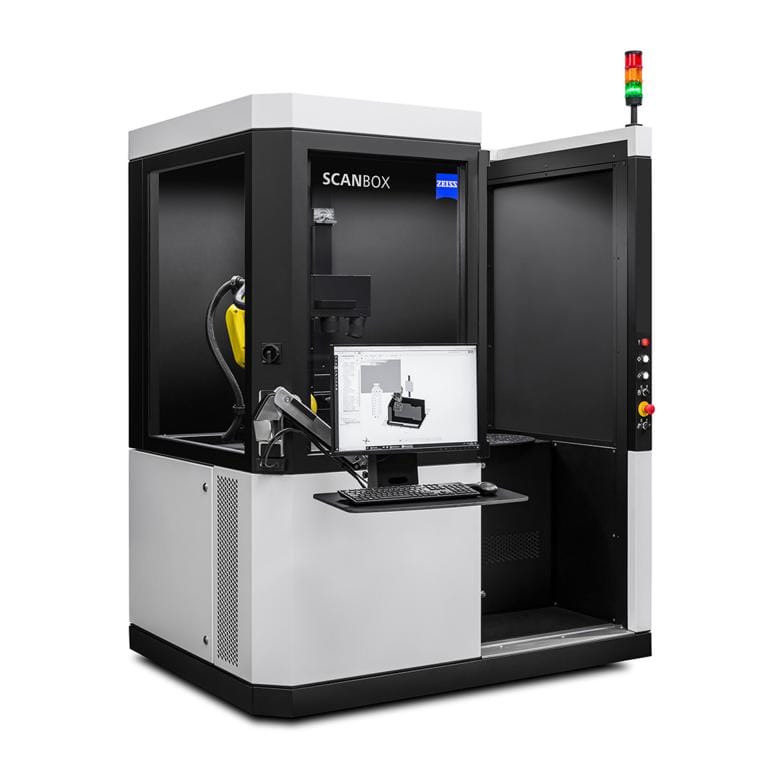

ZEISS ScanBox Series 4
With the ZEISS ScanBox 4105 optical 3D measuring machine, you can quickly and efficiently inspect small and complex parts up to 500 mm in size. The compact and mobile system is ready for immediate use thanks to the plug & play concept and can be easily repositioned if required. All measuring processes and inspection sequences can be started directly at the integrated operating station. The special user interface – the Kiosk Interface – and the virtual measuring room (VMR) in the ZEISS INSPECT software take over the entire process control.Key Highlights
- Easy operation
- Automation
- High tech software
Easy Operation

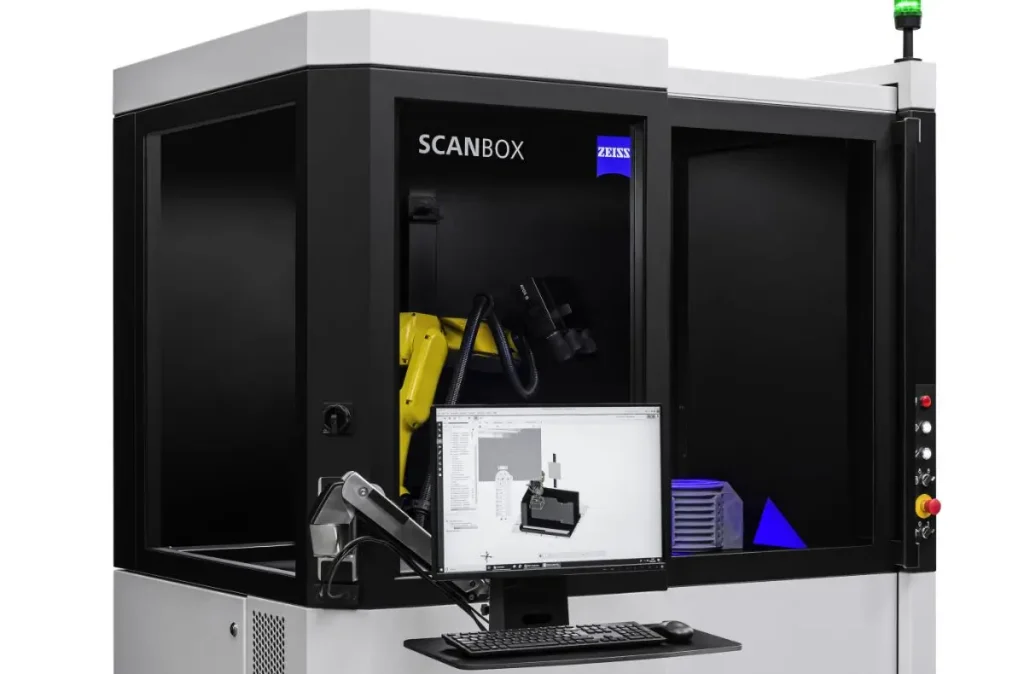

Plug and Play
ZEISS ScanBox 4105 can be connected to any standard power socket: Simply switch on the optical 3D measuring machine and start the measuring program.

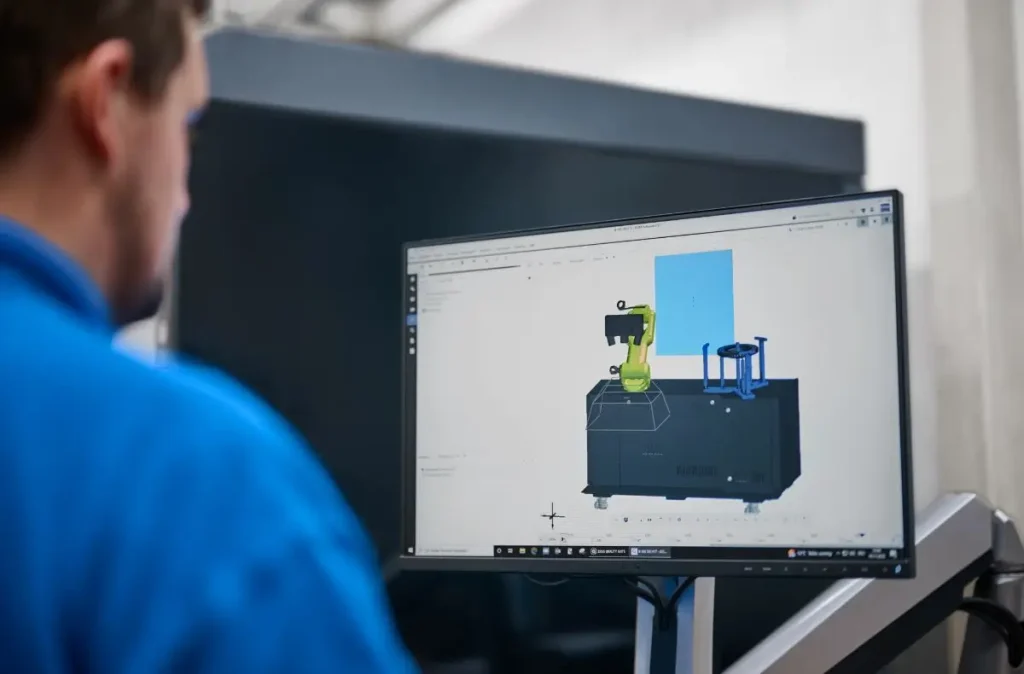

Simple User Interface
Program and control the optical 3D measuring machine via a simple user interface – the Kiosk Interface. Your plant employees do not need any special technical knowledge to operate it: Insert the part, select the measuring program and press the start button.
Automation

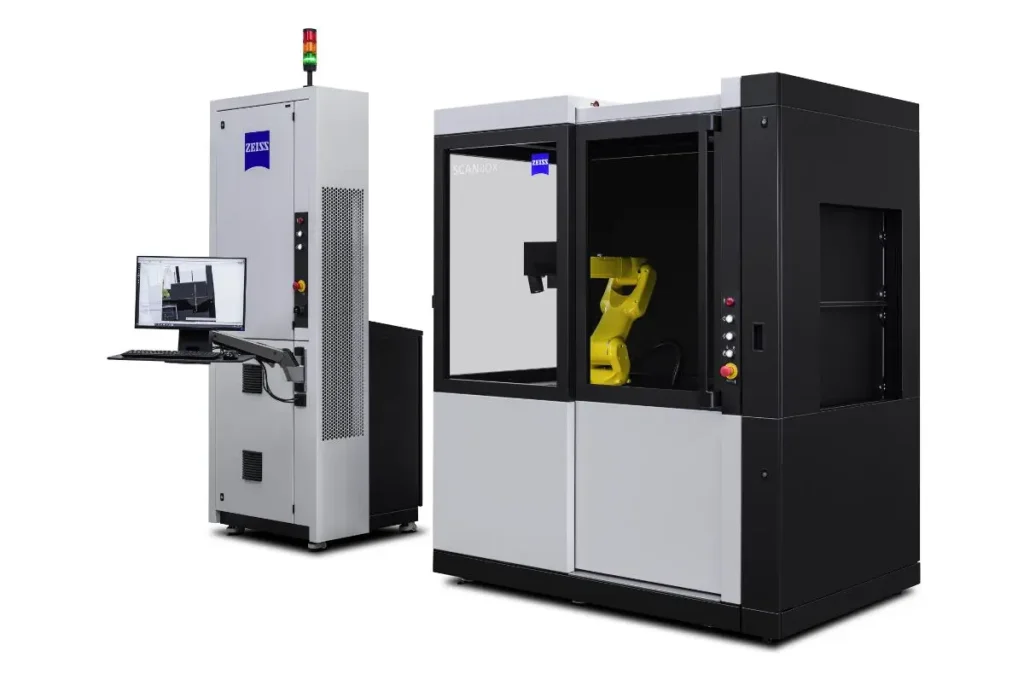

Automated loading and autonomous part inspection
ZEISS ScanBox Series 4 RC (Remote Control) is a new optical 3D measuring machine with a motorized sliding door. The parts to be inspected are automatically loaded into ZEISS ScanBox Series 4 RC by a robot or an individually configured loading system and placed on the rotation table module. By eliminating the need for manual individual placement, the time required is significantly reduced, thus ensuring a higher throughput in quality assurance.

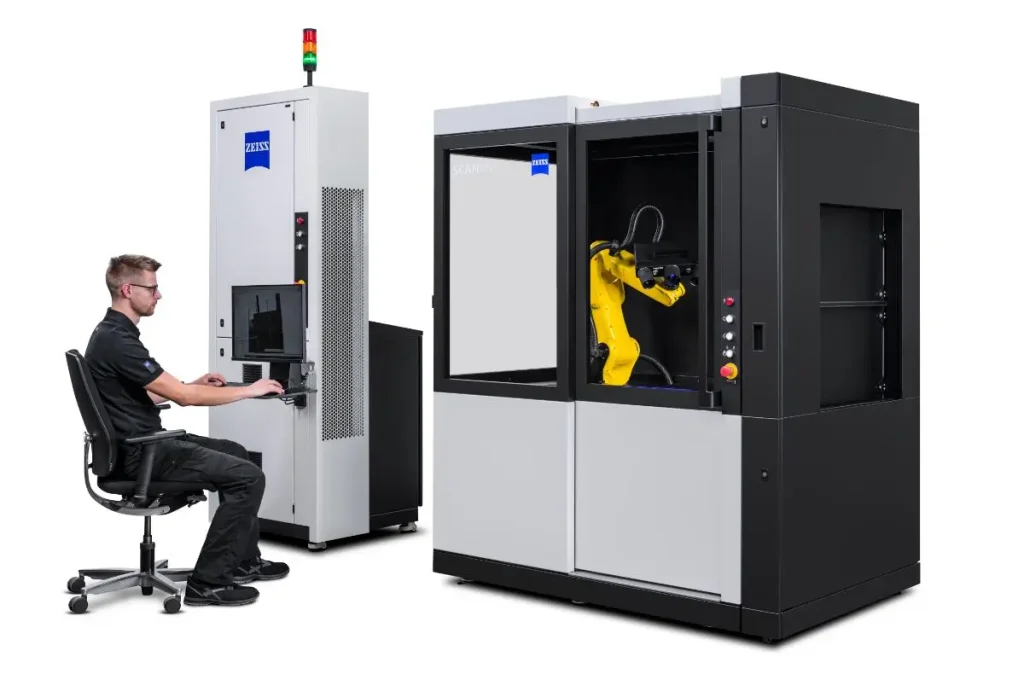

Continuous, Fast and Precise
The integrated ATOS Q sensor quickly provides quality information with a high level of detail for subsequent inspection and analysis. By using a multi-part fixture, you can measure several parts in one run – even in 24/7 operation if required: This allows you to increase your throughput, produce less scrap and standardize your quality assurance.
High Tech Software

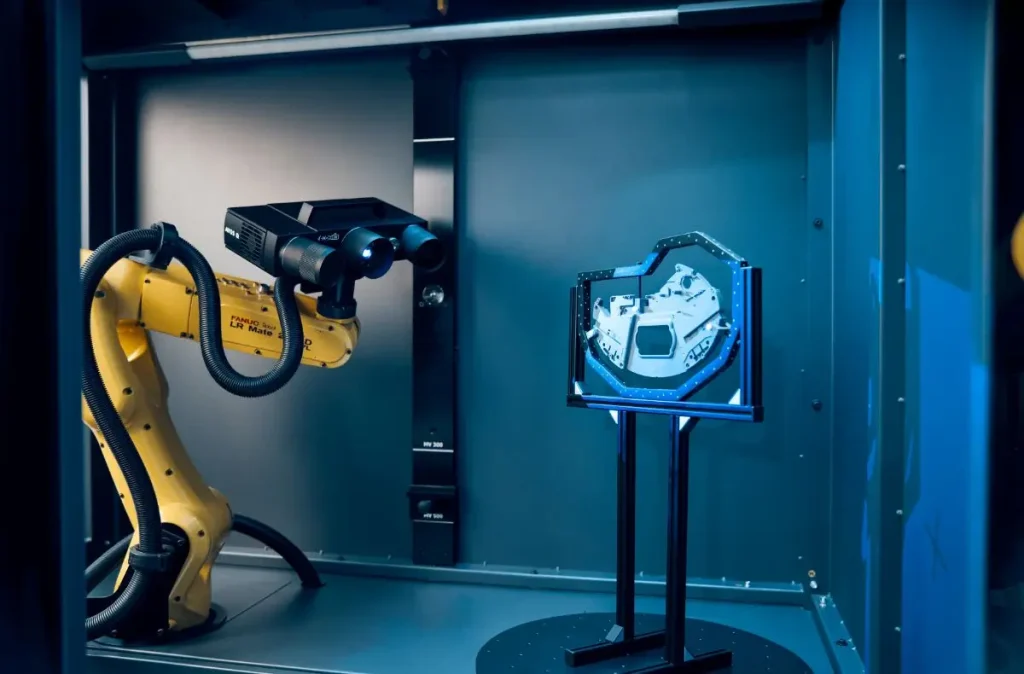

Virtual Measuring Room
The virtual measuring room (VMR) is the central control and measurement planning software for all elements of the optical 3D measuring machine. It offers the functional representation of a real measurement environment in a virtual simulation. The VRM consists of a robot with a sensor, the programming, including the kinematics of the robot paths, the part and the measurement plan. Thanks to the VMR, the user does not need any special robot expertise. All robot movements are simulated in the virtual measuring room before execution and checked for safety.

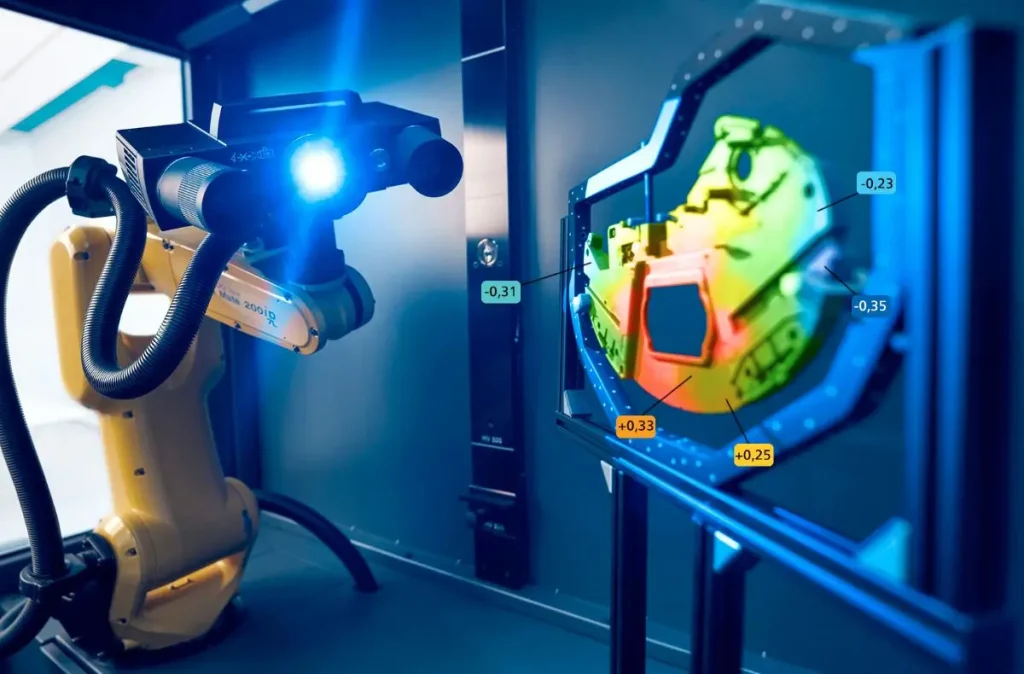

ZEISS Inspect
Scanning, inspection and reporting: Evaluate nominal-actual comparisons as well as GD&T. Implement necessary corrections directly thanks to easy-to-understand results. With ZEISS INSPECT, you can carry out complete analyses, receive comprehensive reporting and integrate measurement results into existing processes.
Technical Data
| Dimensions | 1700 x 1200 x 2420 mm |
|---|---|
| Power supply | Standard, 100-240 V (1-phase, 16 A) |
| Max. part size | Ø 500 mm |
| Max. part weight | 100 kg |
| Opening width | 680 mm |
| Sensor compatibility | ATOS Q |
